Hays Turbine Meters Series WP/WT

Hays Turbine Meters Series WP

• Operating Pressure - 150 psi

• Maximum Operating Temperature Cold Water 105°F (40°C)

• 3 Layers Epoxy Coating

• Available in Sizes 2", 3", 4", 6" and 8"

WPT - Turbine Meter/Totalizing
WPR - Turbine Meter/Reed Switch Sensor.  Provides a dry contact closure to pumps and controls.  No external power source is required.
WPO - Turbine Meter with Opto-Electric Sensor.  Three wire device providing transistor output and requiring external power.
WPI - Turbine Meter with Inductive Sensor.  Two wire device and requiring a smart signal conditioner.
C - All Hays WP Series Meters are available in (C) Cold Water.

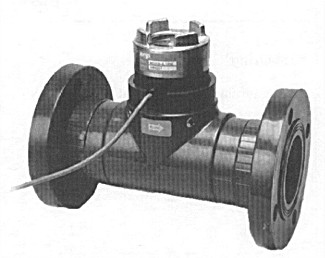

Hays Turbine Meters Series WT

• Choice of PVC or Stainless Steel

• Rate, Total and Pulse Output

• High Accuracy, Especially Low Pressure Loss

• Jewel Bearings

• Register can be Meter-Mounted or Remote

• Temperature: PVC - 140°F; SS - Standard - 140°F, High Temp - 250°F

• Available in Sizes 2", 3", 4" & 6"

Typical Applications:

• Totalizing

• Commercial/Industrial Water Softening

• Water Treatment Control

• Water Conservation

• Proportional Feed of Chemicals

• SCADA
