ASCO 4-Way Solenoid Valves

Asco 4-way solenoid valves are generally used to operate double-acting cylinders or actuators.

They have four or five pipe connections, commonly called ports:

• One pressure inlet.

• Two cylinder ports providing pressure to the double-acting cylinder or actuator.

• One or two outlets to exhaust pressure from the cylinders.

• In a de-energized position, pressure is connected to one cylinder port; the other port is connected to the exhaust. In an energized position, pressure and exhaust are reversed.

• Four ports means less piping is required. With five ports, independent speed controls can be mounted in each port


	Series 8340 Air Only Solenoid Valves		Series 8342 Direct Acting High Flow Solenoid Valves		Series 8344 Piston Poppet Solenoid Valves
	Series 8401/8402 Miniature Solenoid Valves		Series 8551/8553 Spool Solenoid Valves		Series 8551 Inline Solenoid Valves
	Series 263/264 Poppet Solenoid Valves		Series 541 ISO 1 Spool Solenoid Valves

RedHat Next Generation 4-Way Solenoid Valves

RedHat Next Generation 4-Way solenoid valves have four or five pipe connections, commonly called ports. One pressure inlet, two cylinder ports providing pressure to a double acting cylinder or actuator, and one or two outlets to exhaust pressure from the cylinders.

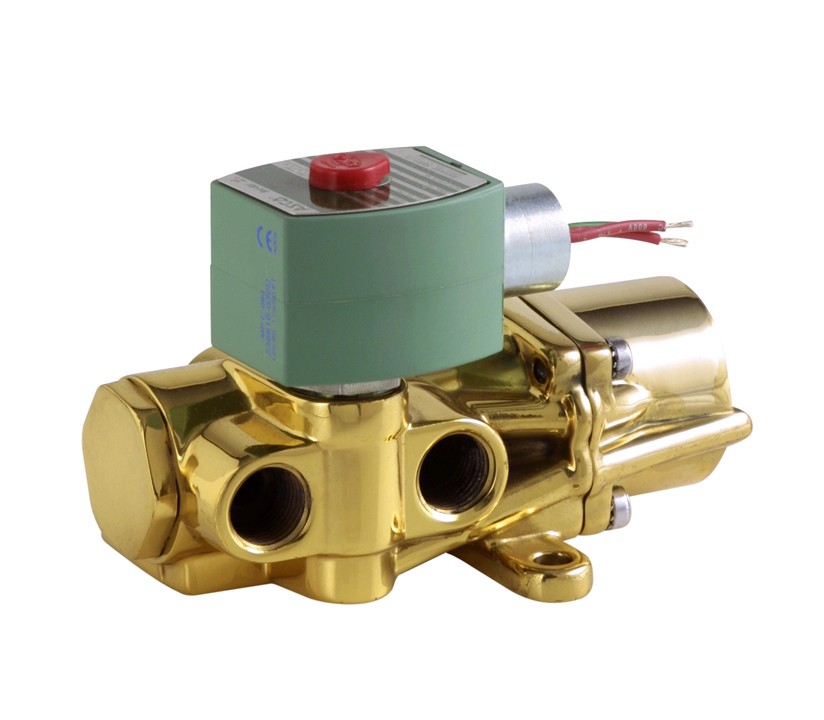

Series 8344 4/2 - Pilot Operated Piston/Poppet - 1/4" - 1": Pilot operated piston/poppet solenoid valves are available with brass bodies for a wide variety of applications.

Series 8345 5/2 - Pilot Operated Compact - 1/4": Pilot operated compact solenoid valves are available with brass bodies.

ASCO RedHat Next Generation 4-Way Solenoid Valves
